WMI & CIM

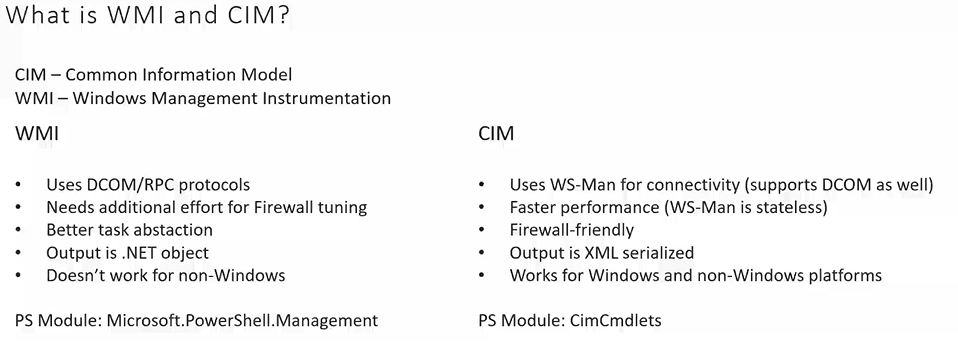

1. What is CIM?
   • WMI and CIM are used to get information and control computers remotely (like processes, services, hardware).
   • CIM is newer and cross-platform, while WMI is Windows-only and older.
   • CIM (Common Information Model) = industry standard for managing computers.
   • Created by Microsoft, HP, IBM, and others.
   • Provides general models for services, processes, CPUs, disks, etc.
2. What is WMI?
   • WMI (Windows Management Instrumentation) = Microsoft’s implementation of CIM.
   • CIM and WMI are the same standard, but different names.
3. PowerShell Commandlets
   • WMI cmdlets → older, introduced in PowerShell 1 & 2.
   • CIM cmdlets → newer, introduced in PowerShell 3+, use CIM prefix.

---

1. Protocol Differences

Feature	WMI cmdlets	CIM cmdlets
Protocol	DCOM (stateful)	WS-Man (stateless, HTTPS)
Ports	TCP + random 1024–65534	Single HTTPS port
Platform Support	Windows only	Windows + other platforms
Output Object	Full .NET object	Serialized object (needs Invoke-CimMethod)
Remote Connection	Only WMI cmdlets	CIM cmdlets via WS-Man
Firewall Configuration	Required for multiple ports	Easier, only one port

---

Using WMI vs CIM in PowerShell

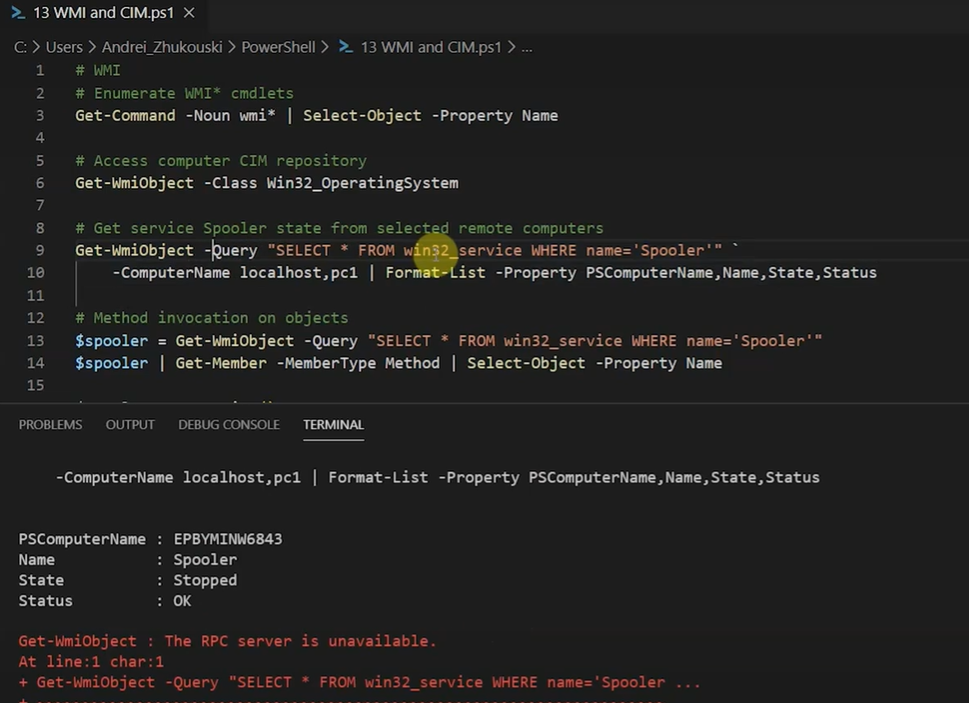

• WMI example:

Get-WmiObject -Class Win32_Process -ComputerName Server01

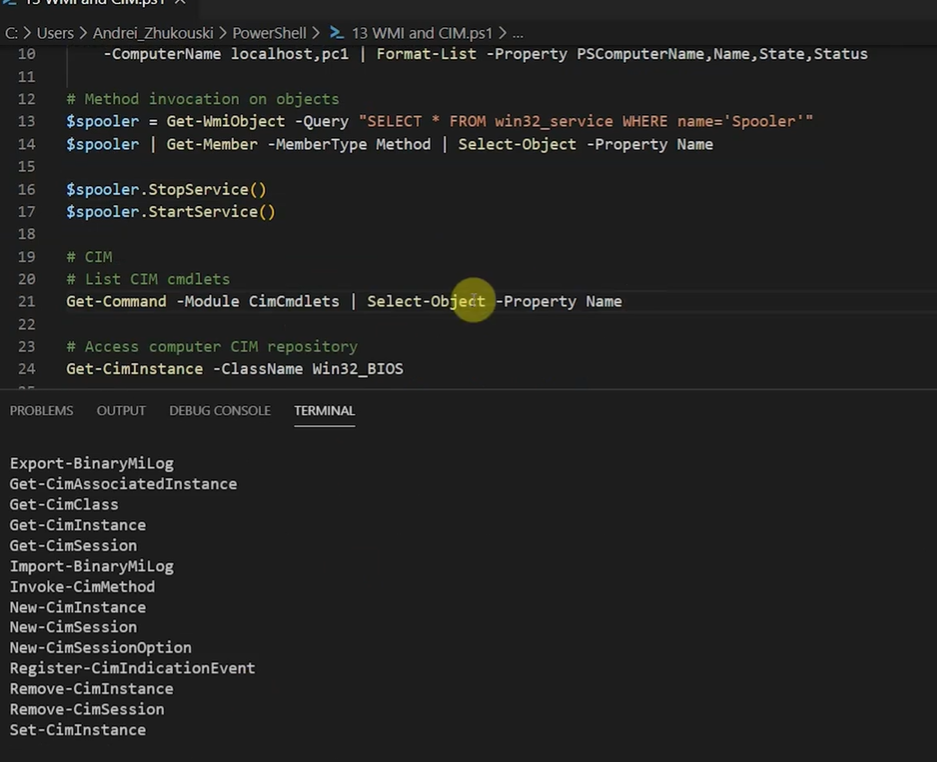

• CIM example:

Get-CimInstance -ClassName Win32_Process -ComputerName Server01
Invoke-CimMethod -InputObject $process -MethodName Terminate

Note: CIM objects are serialized, so to run methods you use Invoke-CimMethod.

---

Key Advantages of CIM

• Uses standard WS-Man protocol, easier firewall configuration.
• Works on Windows and non-Windows platforms.
• Microsoft recommends using CIM cmdlets; WMI cmdlets are being deprecated.
• More consistent with PowerShell remoting.

---

✅ Memory Tip:

• WMI = Windows only, DCOM, old
• CIM = Cross-platform, WS-Man, new, preferred

CIM vs WMI – Key Differences & Features

1. CIM Sessions

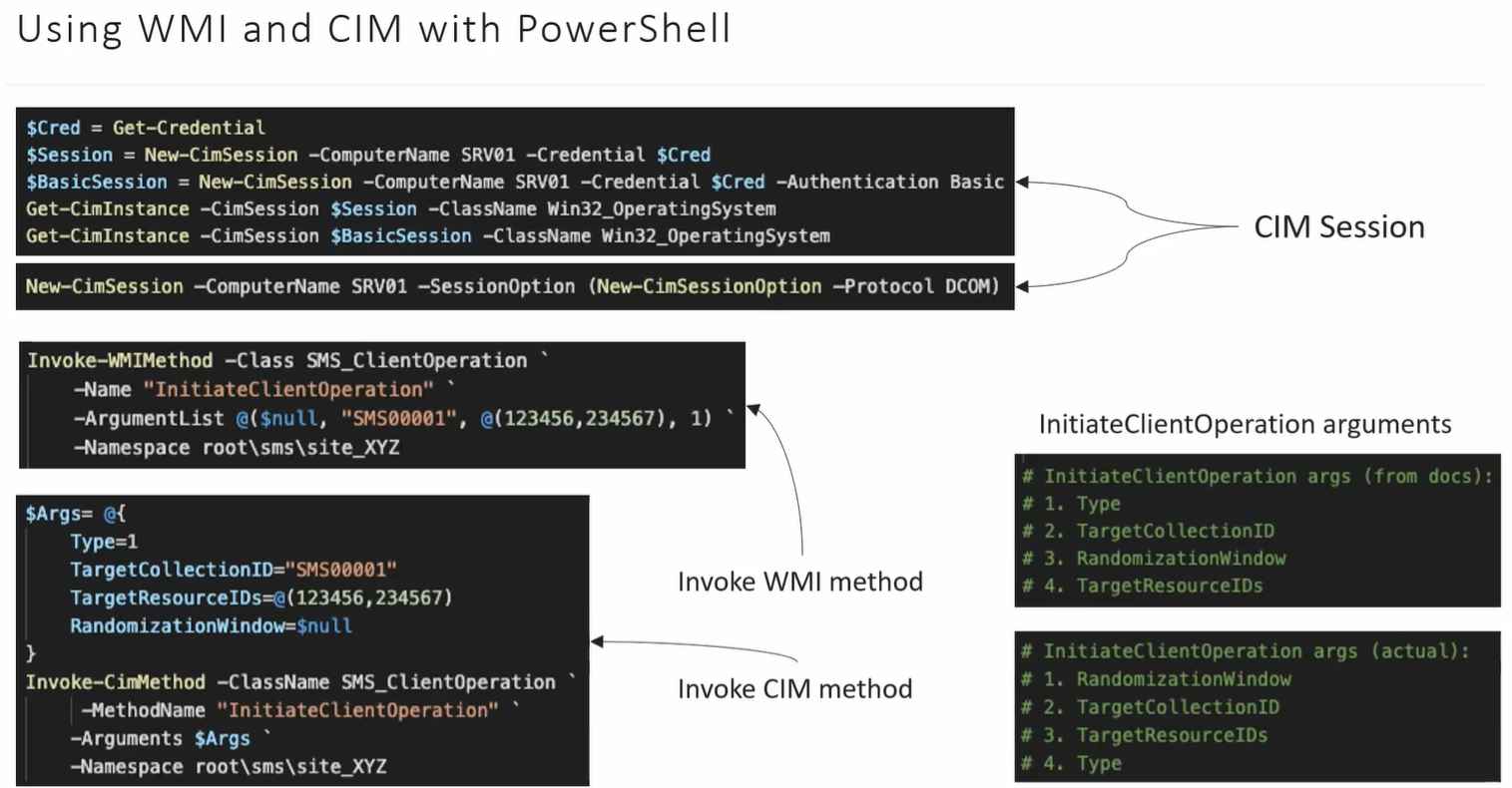

   • CIM cmdlets support CIMSession → allows using different credentials and authentication methods for remote computers.
   • WMI cmdlets only use ComputerName for remote connection.

2. Protocols

   • CIM → uses WS-Man (WinRM) by default, cross-platform.
   • Falls back to DCOM if WS-Man isn’t available.
   • WMI → uses DCOM only, Windows-only.

3. Parallel Execution

   • CIM cmdlets support parallel processing → faster when managing multiple remote computers.
   • WMI cmdlets process computers sequentially, unless you implement parallel scripts manually.

4. Method Execution

   • WMI → methods require parameters in a strict argument list order, easy to make mistakes.
   • CIM → allows named parameters using a hash table, simpler and clearer.

   Example:

   Invoke-CimMethod -InputObject $obj -MethodName InitiateClientOperation `
       -Arguments @{ RandomizationWindow=10; TargetCollectionID="ABC"; TargetResourceIDs="X"; Type="Y" }

5. Which to Use?

   • CIM cmdlets → preferred in most cases, modern, cross-platform, easier to use.
   • WMI cmdlets → use only for older systems (pre-Windows Server 2012) or unsupported CIM attributes.
