Linux N/w Troubleshooting

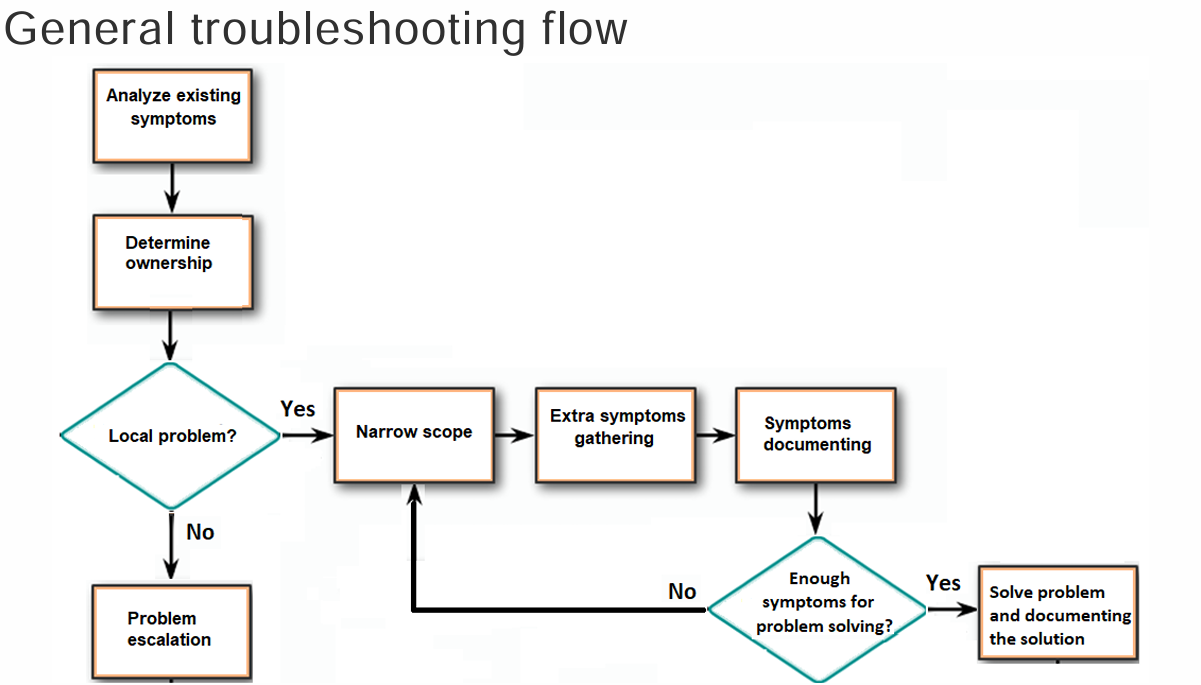

1. The Troubleshooting Mindset

To solve any issue in your Practical Task, follow this 4-step loop to avoid wasting time :

Step 1: Symptom Gathering: Document what exactly isn’t working for the user or the system.
Step 2: Problem Isolation: Eliminate variables one by one until you find the root cause.
Step 3: Corrective Action: Implement and test your fix.
Step 4: Documentation: Save the result so you (or the next guy) don’t have to solve it twice .

2. The “Layered” Strategy (OSI Model)

Think of the network in two halves to narrow your search :

Hardware Layers (1-3): Physical cables, MAC addresses, and IP routing. If ping fails, start here.
Software Layers (4-7): Ports, sessions, and applications (like a browser). If the site loads but “Login” fails, look here.

3. The Troubleshooting Toolkit

Connectivity & Pathing

ping: Uses ICMP Echo to verify accessibility .
- Example: ping 8.8.8.8.
- Details: Shows sequence number (icmp_seq), Time to Live (ttl), and round-trip time (time) .

traceroute: Traces the exact hop-by-hop route by incrementing the TTL value.

Command: traceroute -n <destination>.

Logic: Router sends ICMP Time Exceeded when TTL hits 0.

1. It sends a packet with a TTL value equal to 1.

2. The first router receives the packet and decreases the TTL.

3. With a TTL equal to 0, the router sends a  timeout back to traceroute,
with this packet, traceroute knows about the first router.

4. Now, traceroute sends another packet  with a TTL equal to 2.

5. The first router decreases the TTL and sends the packet to the second router
which decreases it in turn: the TTL is equal to 0…

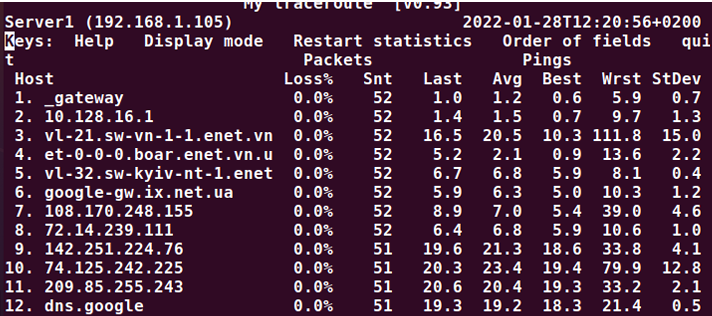

mtr: Combines ping and traceroute into a real-time diagnostic table.

Service & Protocol Checks

netstat: Reveals network connections, open ports, and listening processes.
- TCP Check: netstat -at -n (Shows all TCP connections numerically).
- UDP Check: netstat -au -n (Shows all UDP connections numerically).

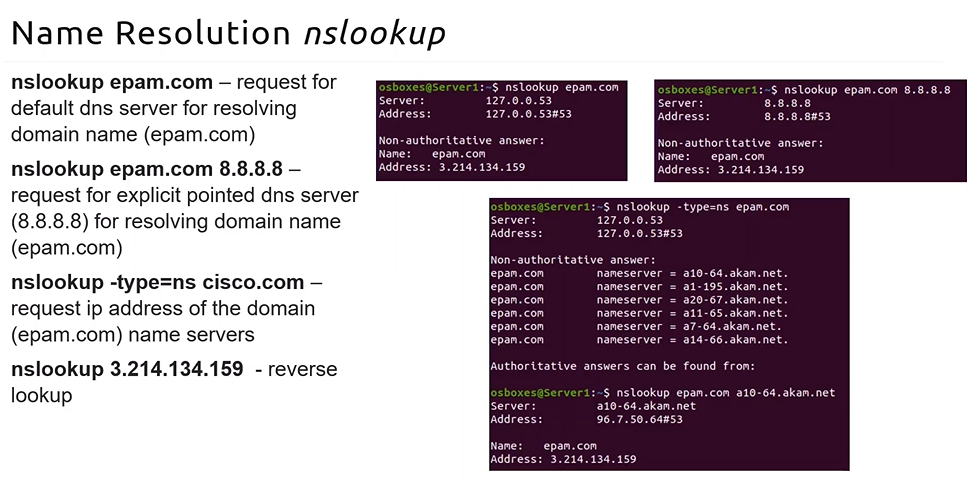

dig / host / nslookup: Used for DNS lookup and troubleshooting name resolution issues .
- DNS Query: dig google.com or host google.com.
- Specific Server: nslookup epam.com 8.8.8.8 (Asks Google’s DNS specifically).
arp: Displays and modifies the local ARP table .
- Command: arp -a.

Deep Packet & Port Inspection

nmap: Used for security auditing and scanning for open ports on remote hosts .
- Basic Scan: nmap epam.com.
- scanning for open ports is illegal in some countries and organization.. take prior consent
tcpdump: A powerful packet sniffer that captures raw data from an interface .
- Filter: sudo tcpdump icmp (Captures only ping-related traffic)

Goal	Command	Why use it?
Is the server up?	`ping <ip>`	Simplest “is it alive” check.
Where is it failing?	`mtr <ip>`	Finds the exact router dropping packets.
Is DNS working?	`dig google.com`	Checks if the name translates to an IP.
Is SSH listening?	`netstat -tunlp`	Verifies the service is actually running.
Who is on my Wi-Fi?	`arp -a`	Sees MAC addresses of local neighbors.
