Pipelines

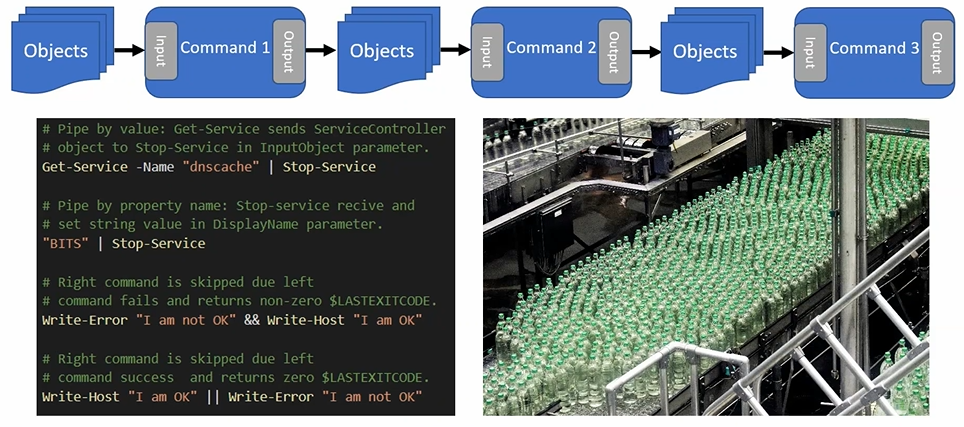

• Definition of Pipeline

  • A pipeline is a series of commands linked by pipeline operators (|).
  • Output of one command becomes input for the next.
  • Commands are processed left to right, and the final result is displayed in the console.

• Cmdlets and Pipelines

  • Most PowerShell cmdlets support the pipeline.
  • You can pass results from a Get cmdlet to another cmdlet with the same noun.
  • The receiving cmdlet must have a parameter that accepts pipeline input.

• How Cmdlets Accept Pipeline Input

  • By value → parameter accepts a value matching the expected .NET type.
  • By property name → parameter accepts input if the object has a property with the same name.
  • Use Get-Help <cmdlet> to see which parameters accept pipeline input.

• Automatic Enumeration

  • Objects implementing IEnumerable are automatically enumerated.
  • Members are sent one at a time through the pipeline.
  • Hashtable requires calling the GetEnumerator() method.

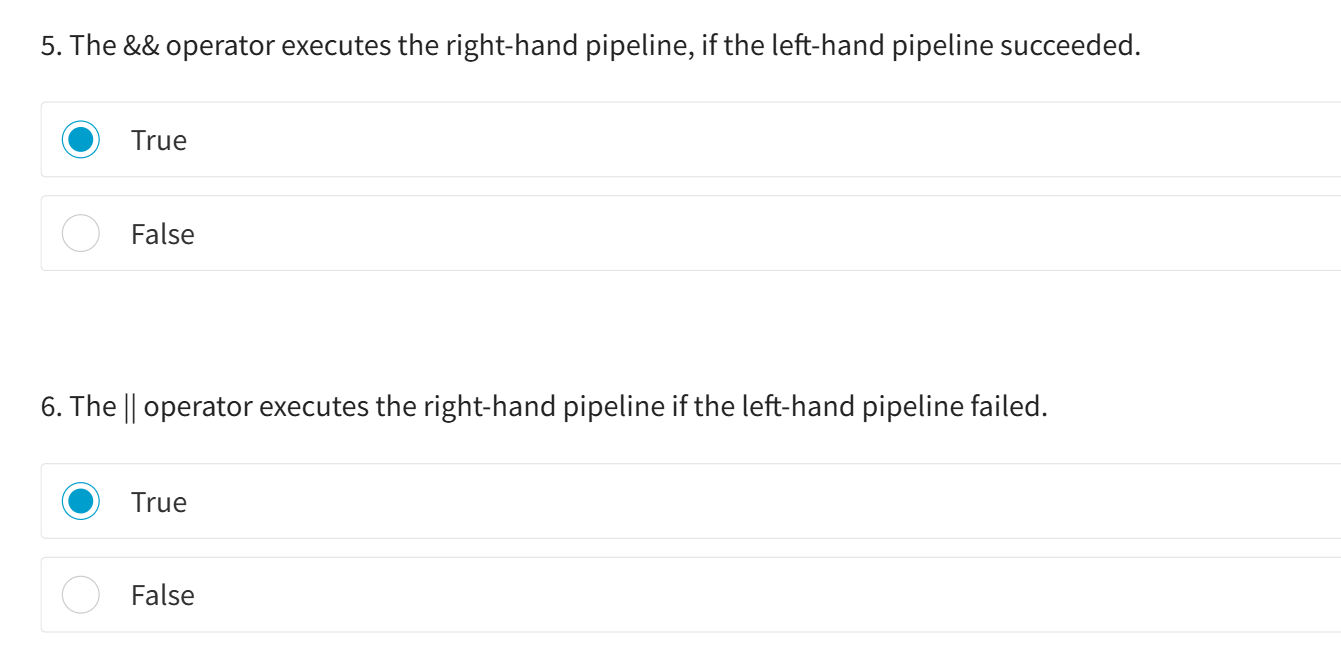

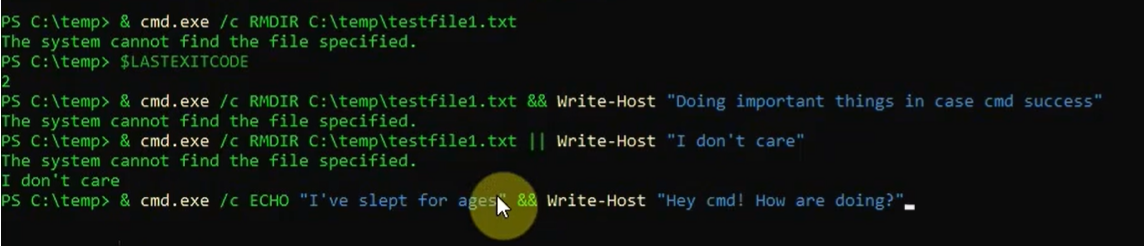

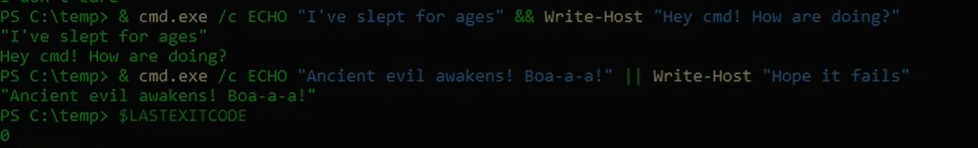

• Conditional Pipelines (PowerShell 7+)



  • && (double ampersand) → executes the right command only if the left command succeeds.

  • || (double vertical bar) → executes the right command only if the left command fails.

  • Uses $LastExitCode to determine success/failure, applicable to cmdlets, functions, and native console commands.

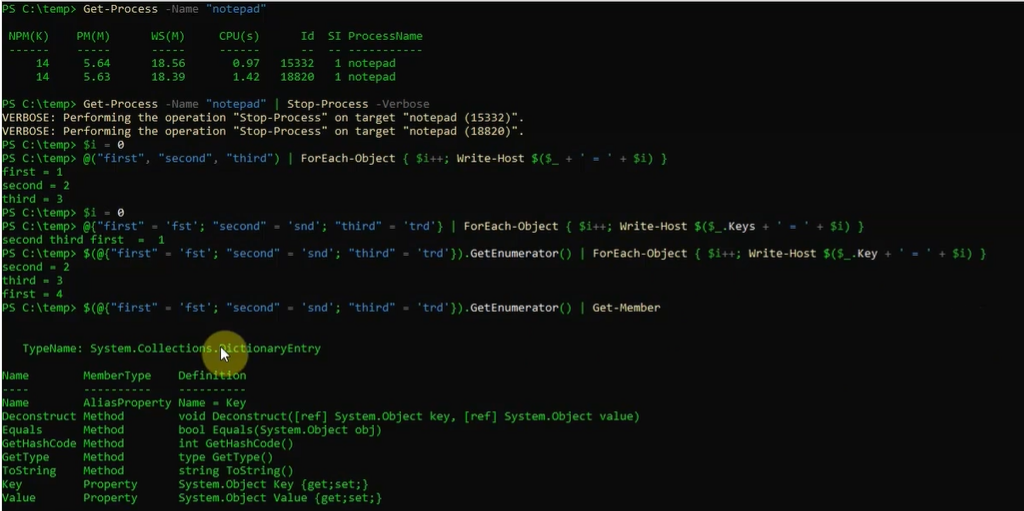

Example..

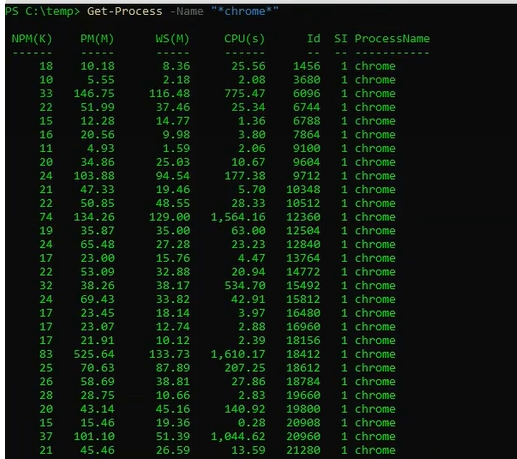

PS C:\Users\PavanKumarBandaru> Get-Process -Name "Notepad" | Stop-Process -Verbose VERBOSE: Performing the operation "Stop-Process" on target "Notepad (24932)".

this will kill all notepad process return by Get-Porcess, not just first or 1 process

basically Stop-Process applied repeatedly on all results of |

Streams..

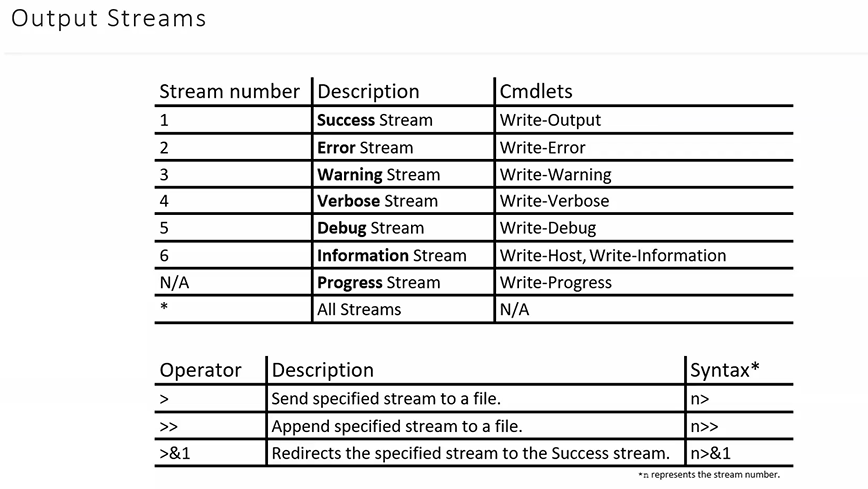

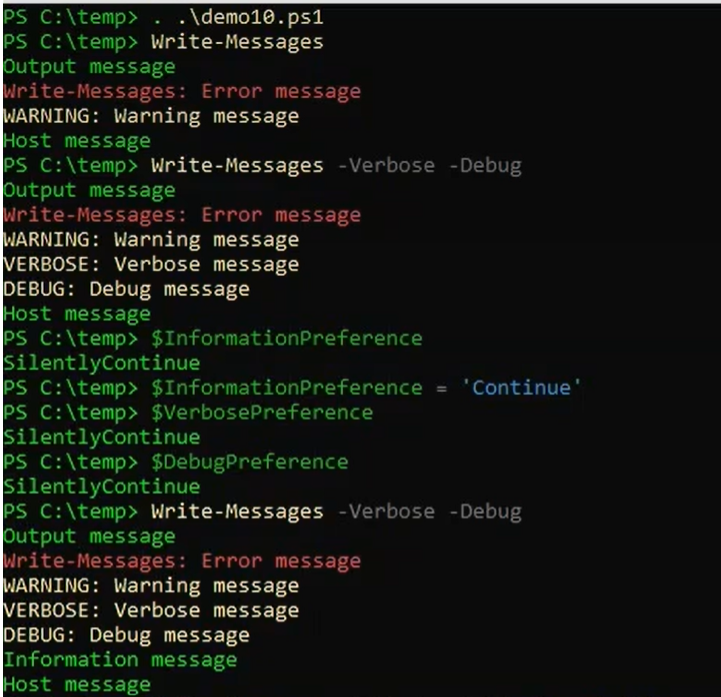

• Streams in PowerShell

  • PowerShell has multiple streams: success, error, warning, verbose, debug, etc.

  • The pipeline only passes objects through the success stream.

  • Other messages (errors, warnings) are separated so they don’t mix with pipeline data.

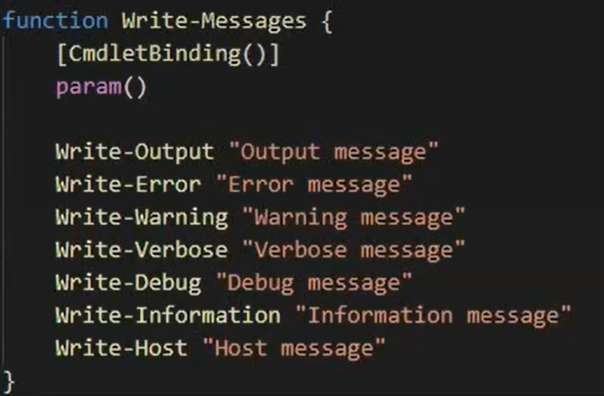

• Common Cmdlets for Streams

  • Write-Output → sends data to the success stream (can be piped).
  • Write-Host → sends messages directly to the host, not the streams.
    • Behavior depends on the host program.
    • In PowerShell 5+, Write-Host wraps Write-Information.

• Better User Communication

  • Write-Verbose → sends messages to the verbose stream.
  • Users can see verbose messages by using the Verbose parameter or changing $VerbosePreference.
  • Recommended over writing to the success stream or using Write-Host.

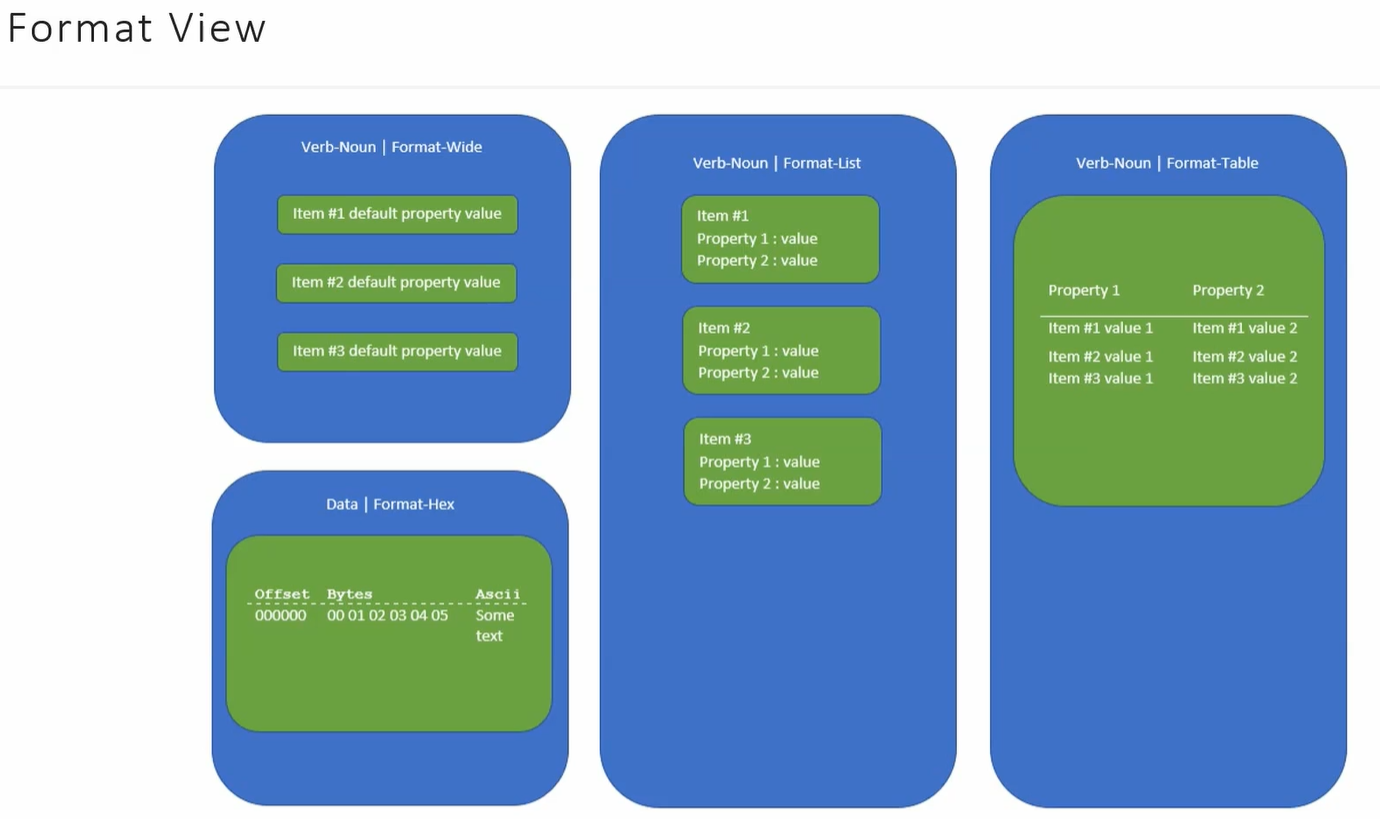

• Formatting Output

  • Format cmdlets help control how object properties are displayed.
  • Format-Wide → shows one property, arranged in columns.
  • Format-List → shows each property on a separate line, supports wildcards.
  • Format-Table → shows multiple properties in table form, good for a detailed view.

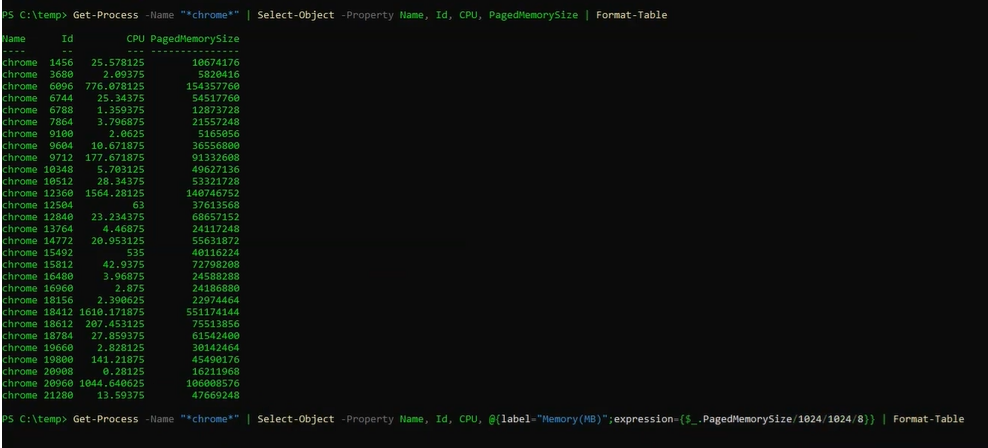

  • Format cmdlets can be combined with Select-Object in a pipeline.

    • Select-Object lets you pick properties or create custom properties using logic with curly braces.



• Key Takeaways

  • Keep pipeline data and user messages separate.
  • Use Write-Verbose for user messages instead of Write-Host.
  • Format cmdlets + Select-Object = flexible, clean output.

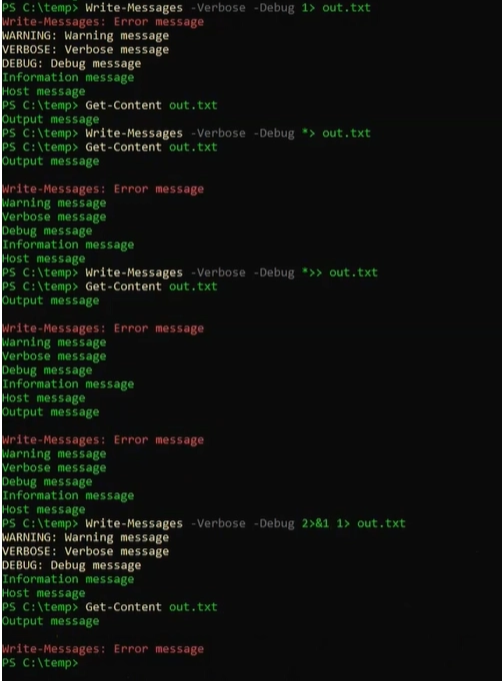

OUTPUT

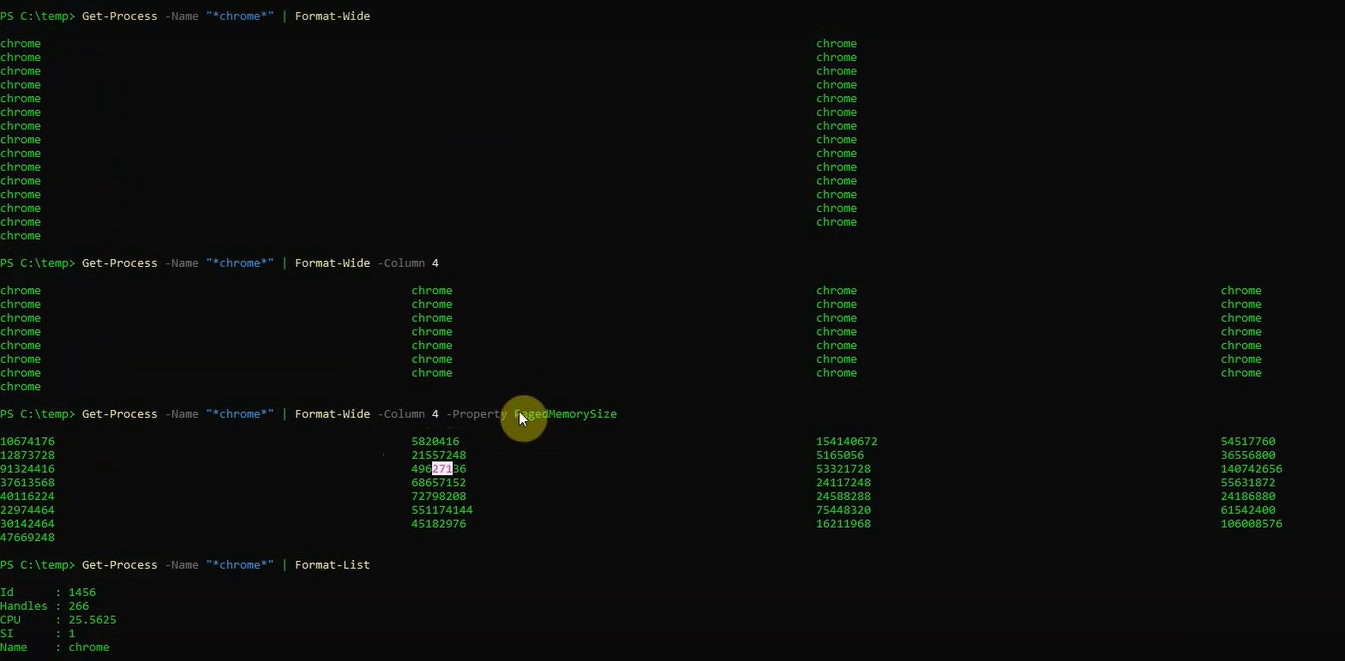

Format-View Examples..
